10,000 2 Post Asymmetric Lift with AV arms

USD $7,482.00

Rotary Lift
Made In The USA
Click to see additional Options / Models / Accessories Available
Options Accessories

Request a call



Click to view California Proposition 65 warning




10,000 2 Post Asymmetric Lift with AV arms Rotary’s AV Arms allow you to properly lift any vehicle on recommended OEM pickup points. Get more vehicles in the shop and on the lift faster with easy spotting and superior lifting capabilities.

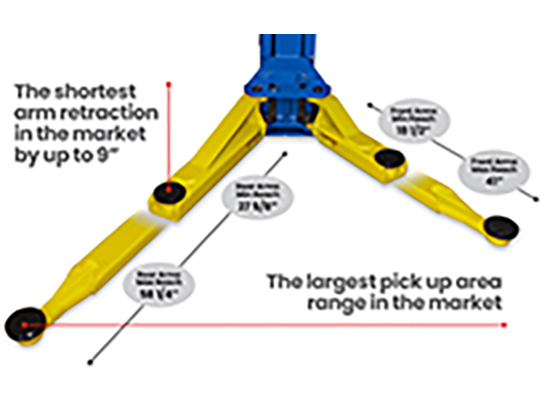

With the shortest arm retraction and largest pickup range of any two-post lift, Rotary’s AV lift arms simplify your shop and give technicians the flexibility and clearance needed to service any vehicle.




Features

  • Easily spot lower profile vehicles with the 3 3/8" minimum adapter height.
  • All vehicle arms with increased reach.
  • Reach small, specific pick-up points on EVs with enough clearance to remove propulsion batteries.
  • High-strength tapered arms for easier and faster positioning of adapters compared to traditional arm designs.
  • Front Arm Reach 18 1/2" min., 41" max
  • Reat Arm Reach 27 5/8" min., 58 1/4 " max.
  • Lift comes standard with round adapters, truck adapters and stacking extensions to lift, unibody, frame and EV



Technical

Load carrying capacity 10,000 lbs
Lifting height 81 1/2 inch
Lifting/lowering time approx. 40 secods s
Weight approx. 1672 lbs
Color Red or Blue
Power supply 220V 60Hz V/Hz/A



Options

39-SPOA10AV EH2 10,000 lb 2 Post with AV Arms Ext Height $8,386.00 Add to cart
39-SPOA10AV SW 10,000 lb 2 Post with AV Arms Shockwave $10,245.00 Add to cart
39-SPOA10AV SW EH2 10,000 lb 2 Post with AV Arms Ext Height Shockwave $10,889.00 Add to cart



Accessories

39-FA5910BK Air/Eletric Utility Box for 2 Post $483.00 Add to cart
39-FA5911BK Air/Eletric Utlity Box with FRL for 2 Post $716.00 Add to cart
39-FJ6238 Electric Vehicle (EV) rectangular polymer Adapter Kit, 3-Stage Arms w/2" hole $1,088.00 Add to cart
39-FJ6278 AV Retrofit Arm Kit for SPOA10 $3,349.00 Add to cart
39-FJ6279-KIT Rectangular Adapter Kit, AV Arms w/2" hole $1,088.00 Add to cart
39-PK202N3373YK RETRO ARM KIT FOR SPO10 $3,076.00 Add to cart
