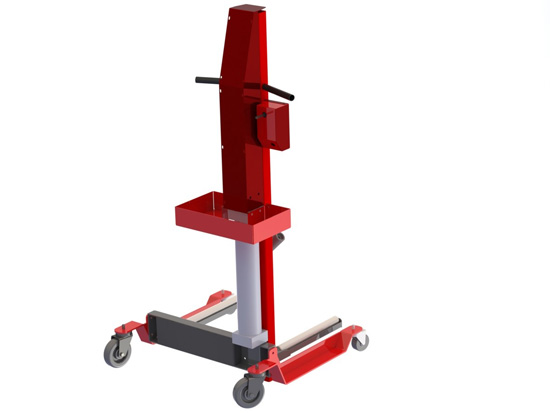

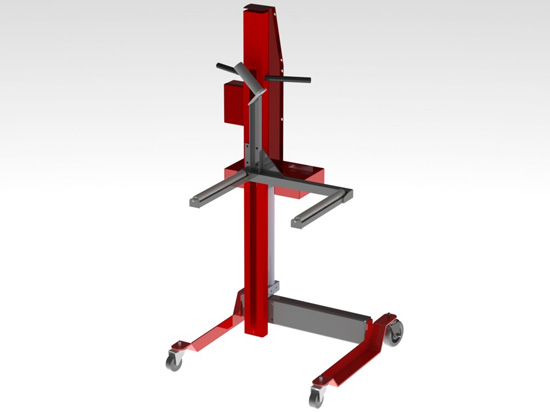

Tire and wheel assemblies are heavy. This can make mounting and demounting difficult and dangerous for one person. Heavy lifting accounts for 20% of all workplace injuries. The QSP air-powered mobile tire lift assists technicians by making everyday tasks much easier. The 200 lb. capacity LM-200 is a powerful tool that can reduce injuries and will be a workhorse in your shop. Designed with an off-center column for better access to lug nuts, balancers and changers. The LM-200 is made in the U.S.A.

Click here to view a spec sheet for the 716-LM-200.

Click here to view an article about automotive/collision back injuries.



Support Documentation

• LM-200_spec sheet.pdf
• Health Safety Page 14 CollisionRepairMagazine2016.pdf



Features

• Lifts tire and wheel assemblies of up to 200 lbs.
• Four swivel high-capacity casters, two with brakes.
• Rolls from vehicle to tire changer or balancer.
• Rise height at rollers 41".
• Tool tray with air-tool attachment.
• Steel rollers to spin wheel for lug nut alignment.
• Raises to full height in 7 seconds.
• Air-operated, always ready to go.
• Greatly reduces exposure to employee back and shoulder injury.



Technical

Wheel weight, max.	200	lbs
Weight approx.	200	lbs
Color	Red
Power supply	Compressed Air	V/Hz/A
Dimensions (L x W x H)	29 x 35 x 61	inch
