The Mercedes-Benz BenchRack 6300 Standard Package includes the following:

• (1) CAR33907-KIT B84 BR6300 Frame & Tilt Lift
• (1) CAR33990 Ramp Kit for BR6300
• (1) CAR46839 T605 Power Unit 220V 1Ph UL/CSA
• (1) CARNA90001 Assembled Connector T604 Power Unit Kit
• (2) CAR30774 Hydraulic Oil-5 Liter
• (1) CAR30346 D16 Draw Aligner
• (1) CAR701 Pump, Hose & Cyl. Set (10 ton)
• (1) CAR205 Ram Adapter

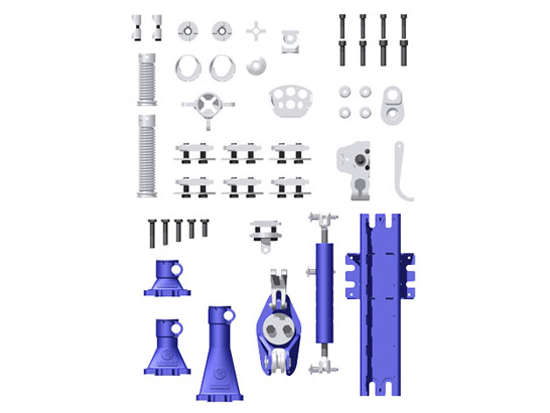

• (1) CAR30948 Bench Parts (B106/B39BR)
• (1) CAR34014 B633 Pillar Jack Kit
• (2) CAR31040 Cable Guard
• (1) CAR930 Double Grab Hook
• (1) CAR931 3/8"x8' Chain w/1 Grab Hook
• (1) CAR934 3/8"x12' Chain w/1 Hook

EFFICIENCY AT ITS BEST

With BenchRack, you may lift the vehicle when loaded on the ramps or lift the frame on lifting pads leaving the wheels and wheel wells free. All service and repair operations can be performed quickly and effectively using a single setup. You avoid the unnecessary interruptions that arise when moving the car between different work stations for steps such as disassembly, alignment, welding, sanding and filling.

SIMULTANEOUS, MULTIPLE PULLING CAPABILITIES

Our powerful 10-ton draw aligners, featuring state-of-the-art hydraulics and can pull from almost any angle, 360º around the vehicle. Use one or two as needed and you’ll finish your repair work in no time!

SAFETY AND ACCESSIBILITY

BenchRack systems increase not only the productivity of your equipment, but also of your technicians. Assisted by the integrated lift, technicians will always work at the most comfortable height. A generous amount of space between the vehicle and bench offers greater accessibility to underbody work. Our special cam locks make it easy to lock BenchRack components onto the bench ensuring secure mounting of the vehicle.



Features

• Powerful-the 10-ton draw aligner pulls from almost any angle, 360 degrees around the vehicle.
• Removable ramps allow easy access all around the vehicle.



Technical

Max Weight Capacity	9,200	Lbs
Weight approx.	2,866	lbs
Dimensions (L x W x H)	248 x 46 x 47	inch
