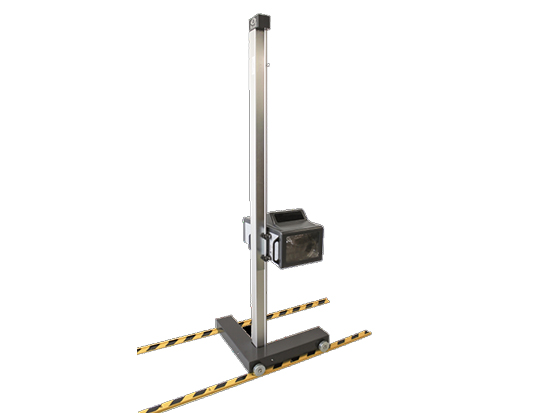

Analog measurement technology with precision in accordance with Daimler AG specifications. Rapid and precise testing of headlight alignment through user-friendly, intuitive operation. High-precision measurements thanks to the use of a premium-quality guide column. Precision column can be locked with fixing screws. Removable color filter behind Fresnel lens. Works with LED and Halogen headlights.

Daimler AG adjustment targets can be affixed to the ferromagnetic surface of the extended column.



Features

• Robust construction.

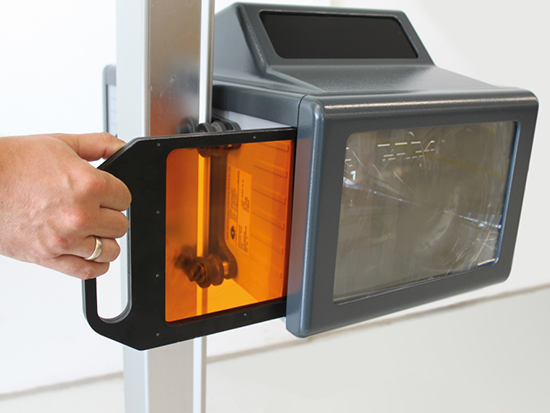

• Color filter for insertion behind the lens.
• Height-adjustable display with percentage scale.
• Column lockable with fixing screws.

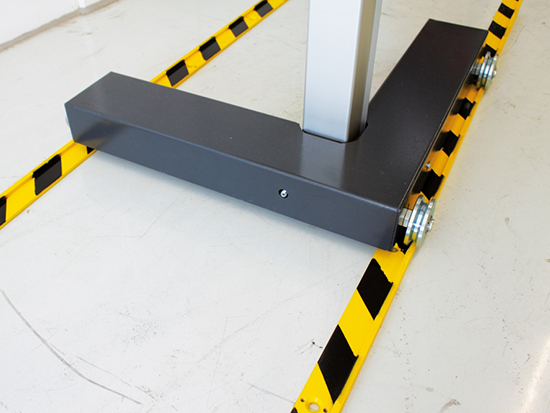

• Includes birghtly colored adhesive strip (10m), usable as approach mark.
• Includes plastic protection cover.
• Luminous intensity: 0 - 40,000 cd; Illumination intensity: 0 - 64 lx.
• Measuring range below: 0 - 600 mm/10m (0-6%).
• Measuring range left & right: 0 - 1,000 mm (0 - 10%).
• Measuring distance: 100 - 500 mm; Hight of light center: 240 - 2,000 mm.
• Operating temperature: +41 to +104 °F (+5 to +45 °C).
• Shipping weight: 176 lbs. (80 kg).
