GYSPOT INVERTER EVOLUTION PTI–S7 SPOT WELDER 220V 4 Meter cable

USD $18,612.00

762-022188

Precision Equipment Systems LLC


Click to see additional Options / Models / Accessories Available
Options

Request a call



The Gyspot PTI Evolution is the ideal answer to the welding requirements of high strength steels (UHSS/boron), with a clamping force of 550daN with 8bars air pressure, and a welding current that can reach 14,500 Amps. Its C clamp integrates a high-tech transformer and the machine also brings a solution to limited power supply issues, as it can operate with 40 Amps. Its operation is extremely easy thanks to the automatic welding parameters setting in AUTO mode

Inverter resistance spot welder with AUTO MODE. The Welder automatically senses steel type and thickness, and sets the welding parameters without the need for operator input.



Features

  • Liquid cooled medium frequency transformer integrated in the clamp
  • Lightest weight clamp and easy to handle
  • High welding current 14 500 A (230 V)
  • Constant current control
  • Low electrical consumption
  • GLUE mode: for welding sheets with glue or other coatings
  • AUTO MODE: automatic setting of welding parameters
  • • 7 modes available to answer the requirements of all end users
  • Record on SD card of the characteristics of each welding spot performed.
  • - Electrode force control - Digital display of the actual electrode arms force - Electrode force: 550 daN with 8 bars



Technical

Welding cable length 157 inch
Weight approx. 375 lbs
Cable length 236 inch
Power supply 208v to 240v 3 phase 60hz V/Hz/A
Dimensions (L x W x H) 32 x 25 x 84 inch



Options

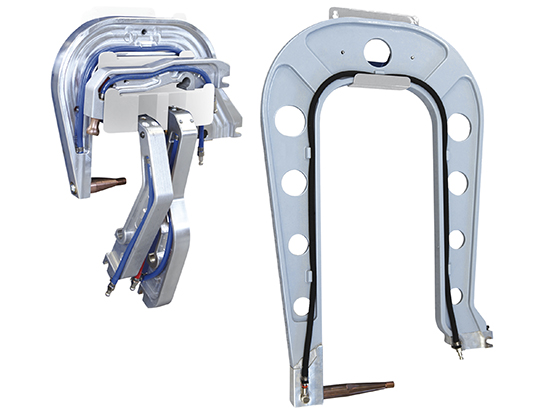

762-0200016 C8 Arm Assembly $1,163.00 Add to cart
762-021426 C4 Insulated Arm 450mm Deep $1,646.00 Add to cart
762-021433 C7 Insulated Arm Assembly $2,078.00 Add to cart
762-048935 Boxof 40 A Caps $145.00 Add to cart
762-048966 Cap Grinder $145.00 Add to cart
762-050853 GYSPOT PTI Cover $334.00 Add to cart
762-051010 Single Sided Welding Kit $1,353.00 Add to cart
762-051638 C10 X Arm Adaptor $1,101.00 Add to cart
762-051720 GYRO 360 $428.00 Add to cart
762-053649 C11 X Arm Adaptor High Pressure $1,156.00 Add to cart
