For Power Train Adapter for Blitz Table - Order Part # 39-107856KIT (MB # 900 589 05 62 00)

Some modern vehicle components can only be removed and/or mounted from the underside of the vehicle. This new component lift table is specially designed for these applications and will make the technician more efficient.

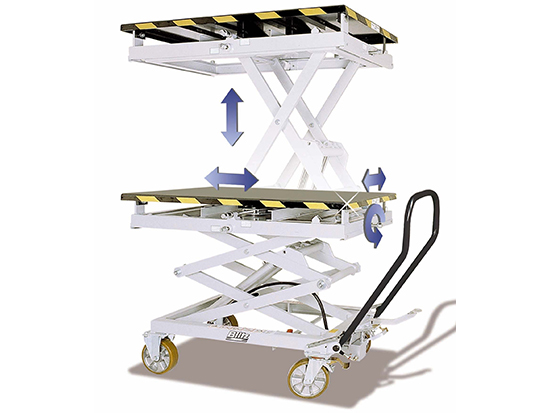

The mobile lift table has a large, tiltable VarioDesk™ platform that provides plenty of workspace and support. Even the removal of large and awkward vehicle components can be done by one person.



Features

• 2,200 lbs. capacity mobile lift table.
• VarioDesk™: The supporting table surface is large and of-fers diverse adjustment possibilities (± 3/4” flexibility in the x- and y-axis and a tilting angle of ± 2°).
• Fully Mobile: Generously sized wheels (rear fixed and front swivelling with integrated locking brakes) make moving the unit easy.
• Accurate Adjustments: The integrated sink brake valve allows precise control of the lowering speed. The load stroke is foot hydraulic.
• Safety: The large base of the lifting platform provides amazing stability and enhances safety and precision.
• Location Holes: Vehicle-specific tools can be easily fastened to the table surface using the continuous location holes.
• Rise: 7 3/8” (1965mm)
• Platform Width: 28 3/8” (720mm) - Platform Length: 49 5/8” (1260mm).



Accessories

39-107856KIT	Drive Train Removal+ Universal Adapter (MB # 900 589 05 62 00)	$3,119.00	Add to cart
39-113799Y	Hydraulic Cylinder (qty 1)	$217.00	Add to cart
39-113990	Pump	$2,161.00	Add to cart
39-502588	Fixed replacement castor for MG1 table - 7-7/8" by 2"	$268.00	Add to cart
39-502589	Swivel replacement castor for MG1	$476.00	Add to cart
